RMA's Composite Plates

Ballistic Properties

red-line_below

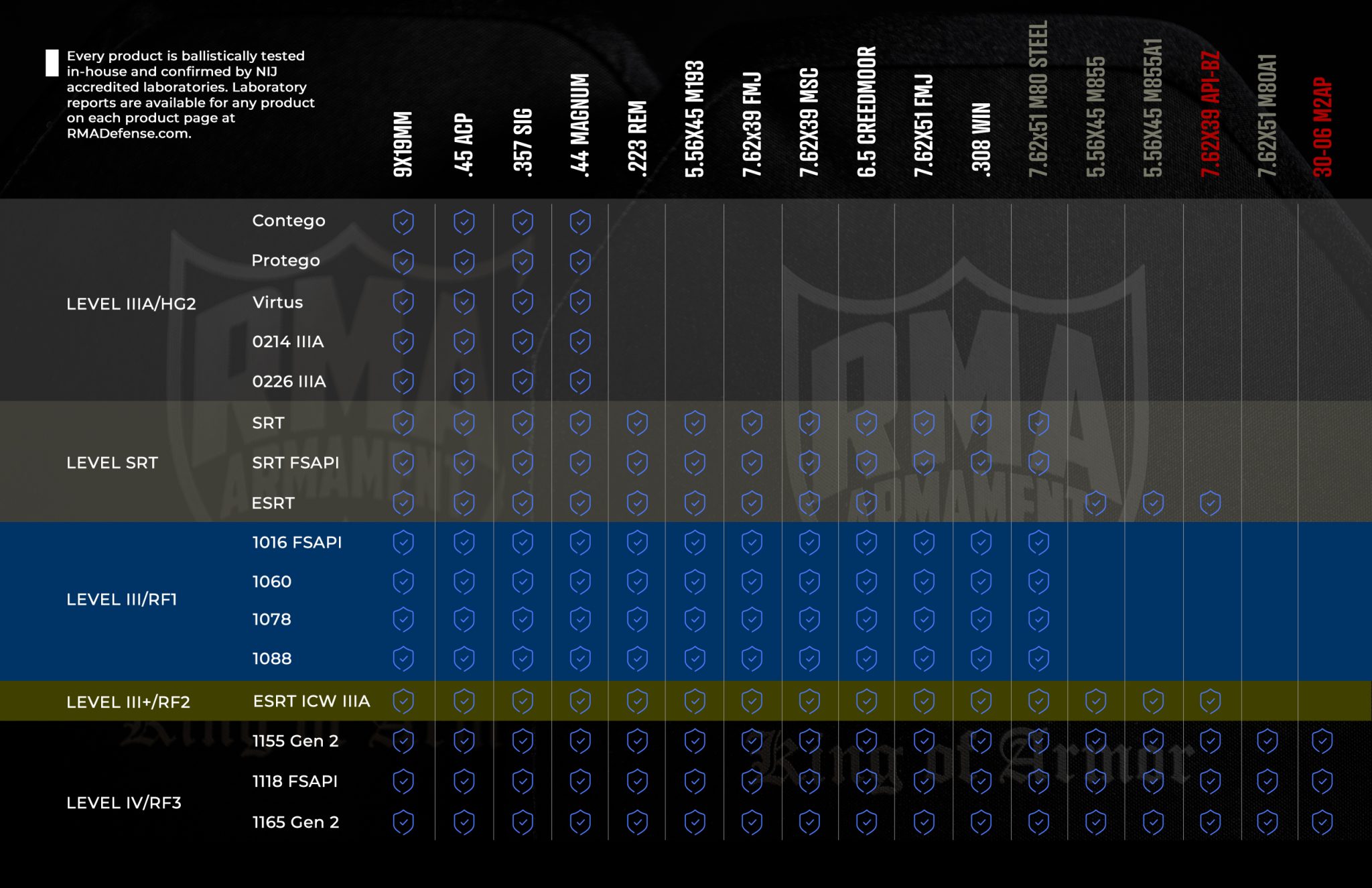

The graph below shows the ballistic properties of RMA’s composite plates only. For ballistic properties of RMA’s steel plates, please see info on individual steel plate pages.

RMA Armament Body Armor Levels Ballistic Chart

Individual Plates

RMA  Plate Properties

red-line_below

RMA Model #0226: Level IIIA Armor

10″x 12″ Stand Alone
Single-Curve, SAPI/ESAPI-Cut
0.88 lbs.
Thickness: 0.25″

RMA Model #1003: Level IIIA+ Armor

10″x 12″ Stand Alone
Single-Curve, SAPI/ESAPI-Cut
2.53 lbs. (1.14 kg)
Thickness: 0.8″

RMA Model #1061-#1064: Level III Multi-Curve Armor

Small: 8.75″ W x 11.75″ H – 3.07 lbs. (1.39 kg)
Medium: 9.50″ W x 12.50″ H – 3.48 lbs. (1.57 kg)
Large: 10.25″W x 13.25″ H – 4.13 lbs. (1.87 kg)
X-Large: 11.00″ W x 14.00″ H – 4.90 lbs. (2.22 kg)
Multi-Curve, SAPI/ESAPI-Cut
Thickness: 1.1″

RMA Model #1078: Level III Armor

10″x 12″ Stand Alone
Single-Curve, SAPI/ESAPI-Cut
3.3 lbs. (1.49 kg)
Thickness: 1.3″

RMA Model #1088: Level III Armor

10″x 12″ Stand Alone
Single-Curve, SAPI/ESAPI-Cut
3.0 lbs. (1.36 kg)
Thickness: 1.25″

RMA Model #1090: Level III+ Armor

10″W x 12″ H
4.49 lbs
Single Curve, SAPI/ESAPI-Cut
Thickness: 1.2″

RMA Model #1091-#1094: Level III+ Multi-Curve Armor

8.75″ W x 11.75″ H – 3.91 lbs.
9.5″ W x 12.5″ H – 4.49 lbs.
10.25″ W x 13.25″ H – 5.16 lbs.
11.00″ W x 14.00″ H – 5.66 lbs.
Multi-Curve, SAPI/ESAPI-Cut
Thickness: 1.2″

RMA Model #1155: Level IV Armor

10″x 12″ Stand Alone
Single-Curve, SAPI/ESAPI-Cut
8.3 lbs. (3.49 kg)
Thickness: 1″

RMA Multi-Curve Model #1155mc: Level IV Armor

10″x 12″ Stand Alone
Multi-Curve, SAPI/ESAPI-Cut
8.2 lbs.
Thickness: 1″

RMA Model #1189: Level IV Armor

10″x 12″ Stand Alone, 8″x10″ Ceramic Coverage
Single-Curve, SAPI/ESAPI-Cut
6.9 lbs.
Thickness: 1″

RMA Model #1192: Level IV Multi-Curve Armor

9.5″ x 12.5″ Stand Alone
Multi-Curve, SAPI/ESAPI-Cut
5.7 lbs.
Thickness: 0.9″

RMA Model #1199: Level IV Armor

10″x 12″ Stand Alone
Single-Curve, SAPI/ESAPI-Cut
5.0 lbs.
Thickness: 1.1″
